Cat5 HDMI Matrix System

SB-HDMI-IP-8x16 Matrix

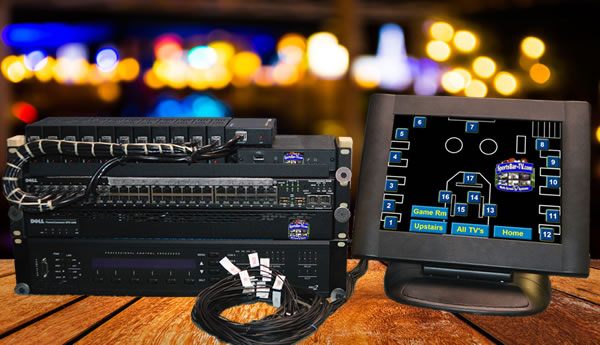

Our most popular system is our, HDMI HD 1080p Video over Cat5 wiring system which includes the SB-Touch v2 Controller and all interconnect cables (except the Cat5 to the TV's).  The basic system is 8 sources to 16 TVs and can be scaled to any size by adding more receivers, source converters or additional switches (each switch supports 48 additional ports).  Audio is delivered to each TV and zoned audio is also available.

Cat5 HDMI System with 12 inputs and 32 outputs, Audio is 12x8 Analog (8 zones)Cat5 HDMI System with 12 inputs and 32 outputs, Audio is 12x8 Analog (8 zones)

Click Image Above to Enlarge Picture

Installation is incredibly easy, and all instructions are included in an easy to understand format.  The unit will arrive pre-wired and ready to slide into your rack or set on a shelf or table as a single self-contained unit - just plug in your sources and TVs and you're ready to go.

Just run Cat5 Ethernet cable to each TV, then plug in your sources such as DTV, Cable, DVD, or PC's directly into the unit (via the included 6 foot HDMI cables).  The included IR Flashers should then be stuck with the adhesive backing onto the front of the source boxes for easy control.  The Touch panel connection is also just a Cat5 run.

HDMI IP SchematicHDMI IP Schematic

The system includes dual redundant power supplies to insure 100% up-time! The system will even message us should there be a power supply or other failure allowing pro-active repairs BEFORE an outage!  Remote updating and troubleshooting are also standard, should you need to change something we can make the program modifications without the need for you to have any programming equipment in house.  No one makes it easier to build out a full-scale TV system and no one has an easier to operate touch panel controller. Optional IR to each TV for Power control is available .

HDMI Cat5 System with 16 inputs and 67 outputs, Audio is 3 Digital Channels, one analog channel to 4 zones
(Click Image Above to Enlarge Picture)

Additional notes on our SB-Touch Control system;   The SB-Touch system Touch panel features a 12" screen with PIP video monitoring plus Ethernet connectivity that allows you to use iPads, Tablets & PC's to control the system; a 15" Touchscreen is also available.  Multiple Touch panels can be installed into the system.

SB-Touch also controls all of the most popular audio systems such as DBX & Yamaha for zoned audio; we also can supply Autopatch or Crestron audio switching with Tone & Volume control.  Our most popular audio add-on allows one digital source (any of the HDMI sources are selectable) and 3 analog sources over 4 zones (bar,dining, entrance, etc).  Each zone is controlled via the Touch panel for Volume and source selection. We have many audio options available, give us a call and we can work with you to determine which one is best for your project.

Lead-time is 1-2 weeks on average and depends on current orders; we work strictly 1st come first served.  Once a deposit is tendered we can lock in a delivery date.  We use refurbished Crestron and switch equipment to reduce the cost by 400%, be assured that our 10 years of expertise in using this equipment allows us to know exactly what may fail in the equipment and we replace or re-engineer it in many cases making the equipment better than new.

We now offer an unprecedented Warranty as well - Refurbished items are covered for a total of 5 years and the new equipment is covered for 1 year.  Even after the warranty period has expired we will get you up and running for as little cost as possible as our policy is not to make money on repairs but to sell only quality items that DO NOT need repair and will last a minimum of 5 years.
